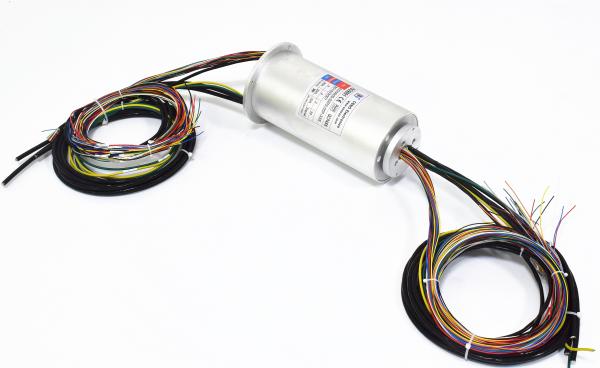

Customized Slip Ring Low Torque Gold To Gold Material 300RPM Speed
We work directly with our slip ring customer to design custom solutions to meet exact electrical slip ring requirements.
Our solutions are customized to meet the exact circuits, ratings, operating speed,material,IP protection grade and other parameters required for your application.
Features
- Easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
- Low torque, smooth rotation
- Transmit data and analog signal,compatible with data bus protocol
Applications
- Medical equipment
- Motion simulator
- Package equipment
Optional
- Circuit number
- Current rating
- Installation way
- IP protection grade
Specification
| ECN000-18P-11S Specification | Picture |
| Current | 18*5A,11*signal |  |
| Voltage | 48V |
| Electrical noise | ≤70mΩ(50rpm) |
| Dielectric strength | ≥1000V@50Hz(power) ≥300V@50Hz (signal) |
| Insulation resistance | 500MΩ@500VDC(power) 100MΩ@300VDC(signal) |
| Operating speed | 0-300 rpm |
| Contact material | gold to gold |
| Operating temperature | -40~+80℃ |
| IP protection grade | IP54 |
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
