156 Circuit Number Multi Channels Slip Rings With Heat Shrinkable Tube
our company CENO multi-channels slip rings' circuit number could reach more than 500 channels.
It could integrate big or small current, digital signal, analog signal, fiber optic and radio frequency.
it can still maintain the long life characteristic even if working speed will be 2000 rotation per minute.
CENO can also provide many parameters for customer to choose ,such as outer diametre,inner diametre ,current,circuit number,IP protection.
Features
◆ High Protection level
◆ Smooth rotation and stable signal
◆ Multi-channels
◆ Integrate various signal
Applications
◆ Lithium battery equipment
◆ Motion simulator
◆ Liquid filling machinery
Optional
◆ Circuit number
◆ IP protection
◆ Signal type
◆ Current rating
Specification
| ECN000-156P Specification | Picture |
| Current | 130*2A; 24* RS485 signal |  |
| Working Temperature | -40℃~+80℃ |
| Protection Grade | IP44 |
| Working speed | 0~300rpm |
| Contact material | Precious metal |
| Rating Voltage | 240VAC |
| Lead Wire Size | AWG26#/28# |
| Lead Wire Length | Rotor 3500mm;Stator 2000mm |

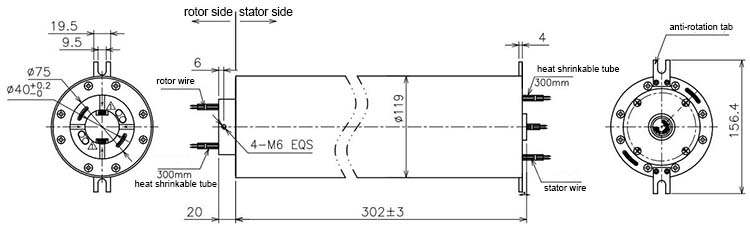

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
