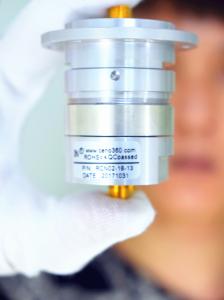

1500W Peak Power Rf Coaxial Rotary Joint Two Channel For Traffic System

Brand Name : CENO

Model Number : RCN02-18-13

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union, L/C

Supply Ability : 1000pcs per month

Delivery Time : 1 weeks

Packaging Details : Cartons/As request

Frequency Range : DC to 18 GHz/13GHz

Peak Power Max : 1500W

Style : I Type

Isolation Min. : 50 dB

Weight : 0.13kg

Case Material : Aluminum Alloy

Contact Now

1500W Peak Power Two Channel Coaxial Electrical Slip Ring For Traffic System

RCN02-18-13 radio frequency slip ring has 2channel with SMA female connector .It is used for transmitting high frequency signal from rotor/stator side to stator/rotor side.Inside base contact material is berycopper and finished material is gold. it has compact structure ,strong anti interference ablility ,easy to be integrated in other equipment.life up to 10million rotations at least with 1500W peak power.According to exact application,protection grade can be designed.

Coaxial Radio Frequency Slip Ring is one of a series of products in our company CENO Electrionics Technology Co.,Ltd .For more RF rotary joints (slip rings) informations ,pls visit our website:WWW.ceno360.com

Typical uses

  • Traffic control system
  • Simulation tester
  • Antenna system

Features

  • Stable performance and high reliability
  • Integrated RF rotary joint
  • Apply to RF signal and high data speed rate transmission


Specification

RCN02-18-13 Specification Picture
Channel 1 Channel 2 1500W Peak Power Rf Coaxial Rotary Joint Two Channel For Traffic System
Interface SMA female (50hms) SMA female (50hms)
Style I type I type
Frequency range DC to 18 GHz DC to 13GHz
Insertion loss,max

0.4dB@0-8GHz

0.9dB@8-18GHz

0.5dB@0-5GHz

1dB@5-13GHz

Insertion loss,WOW,max 0.2dB 0.5dB
Rotating speed,max 60rpm
Peak power,max 1500W
Working temperature -40℃~-+70℃
IP protection grade IP60
weight 0.13Kg
Body material Aluminum alloy

Outline drawing

1500W Peak Power Rf Coaxial Rotary Joint Two Channel For Traffic System



Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

1500W Peak Power Rf Coaxial Rotary Joint Two Channel For Traffic System

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

1500W Peak Power Rf Coaxial Rotary Joint Two Channel For Traffic System

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

1500W Peak Power Rf Coaxial Rotary Joint Two Channel For Traffic System

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
