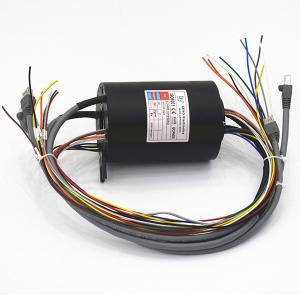

Cable Ethernet Slip Ring Precious Metal Contact Material With RJ45 Connector

Brand Name : CENO

Model Number : ECN025-10P2-02EG

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 500pcs per month

Delivery Time : 1 week

Packaging Details : Carton/As request

Current : 10*10A,2 group 1000M Ethernet

Through bore size : 25.4mm

Protection Grade : IP54

Working speed : 0~300rpm

Contact material : Precious metal

Rating Voltage : 380VAC

Contact Now

Cable Ethernet Slip Ring With RJ45 Connector

CENO Ethernet slip rings combine normal signal and power transmission with 1 or 2 Ethernet cable inside . The Ethernet cable are all suitable for 10/100/1000Mbit transmission and already equipped with RJ45 connectors for usage. CAT5E, CAT6 or CAT7E cables can be selected by the customer.The housing is made of aluminium alloy. All components are stable performance, no packet loss, no string yards and very low noise.

Specification

ECN025-10P2-02EG
Current 10*10A,2 group 1000M Ethernet
Voltage 380VAC
Electrical noise ≤70mΩ(50rpm)
Dielectric strength

≥1000V@50Hz(power)

≥500V@50Hz(signal)

Insulation resistance

500MΩ@500VDC(power)

100MΩ@100VDC(signal)

Operating speed 0-300 rpm
Contact material precious metals
Operating temperature -20~+60℃
Through bore size 25.4mm
IP protection grade IP54

Features

  • Support RJ45 connector
  • Low friction,low torque, smooth rotation
  • Combine signal and power,comply with EMC

Applications

  • Automation equipment
  • Interface transmission
  • Network cable

Optional

  • Through hole size
  • Circuit number
  • Current rating
  • Signal type

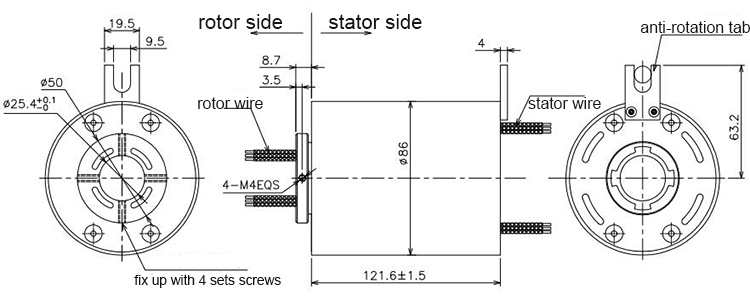

Outline Drawing

Cable Ethernet Slip Ring Precious Metal Contact Material With RJ45 Connector

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Cable Ethernet Slip Ring Precious Metal Contact Material With RJ45 Connector

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Cable Ethernet Slip Ring Precious Metal Contact Material With RJ45 Connector

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
