16000M Working Altitude Slip Ring For Satellite Communications
This slip ring with through bore design, it transmits power and TL signal together , it is widely used for radar antenna
and satellite communications systems. it can work at 16000M altitude airborne operation,and working
temperature -55℃~+70℃ ,even though it works in harsh environments,it still maintains high performance.
Features
- Center hole is easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
- 16000M working altitude
- Low temperature environment
Applications
- Radar antenna
- Satellite communications
- High definition monitoring system
Optional
- Through hole size
- Circuit number
- Current rating
- IP protection grade
Specification
| ECN038-03P2-12S-JZ | Picture |
| Current | 3*10A,12*TL signal |  |
| Voltage | 24VDC |
| Electrical noise | ≤70mΩ(50rpm) |
| Dielectric strength | ≥500V@50Hz |
| Insulation resistance | 500MΩ@500VDC(power) 300MΩ@500VDC(signal) |
| Operating speed | 0-50 rpm |
| Contact material | precious metals |
| Operating temperature | -55~+70℃ |
| Through bore size | 38.1mm |
| IP protection grade | IP54 |

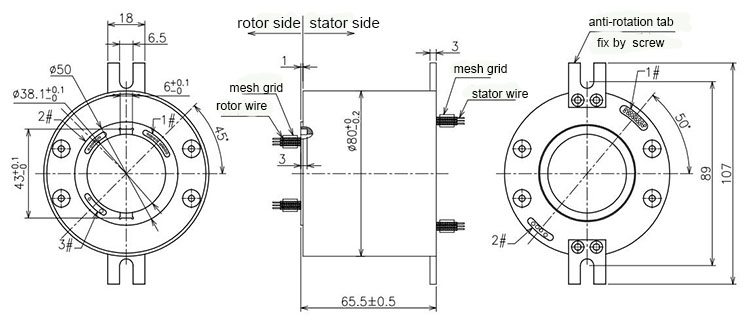

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
