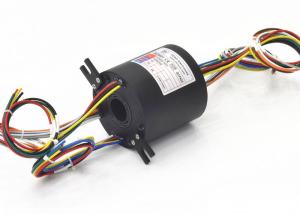

Rotary Joint Assembly Hollow Shaft Series Fiber Brush Multipoint Contact
This is CENO electronics hollow shaft rotary union with aluminum alloy housing material,low electrical noise,smooth rotation,there is a through hole 25.4mm,we can use it for installation,align slip ring's through hole to mounting shaft,apply external force along the axis direction to move the slip ring to predetermined installation position,fixing slip ring rotor part and mounting shaft, fixing stator side via anti-rotation tab.
Specification

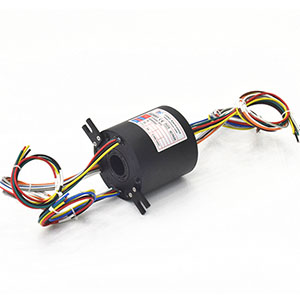

| ECN025-16P3 | Picture |
| Current | 16*15A |  |
| Voltage | 380VAC |
| Electrical noise | ≤70mΩ(50rpm) |
| Dielectric strength | ≥1000V@50Hz |
| Insulation resistance | ≥500MΩ@500VDC |
| Operating speed | 0-300 rpm |
| Contact material | precious metals |
| Operating temperature | -20~+60℃ |
| Through bore size | 25.4mm |
| IP protection grade | IP54 |
Application
- Package equipment
- Medical treatment equipment
- Construction engineering
Optional
- Through hole size
- Circuit number
- Current rating
- Signal type
Outline drawing
Reduce costs
Improve manufacturing efficiency. You asked, we delivered.CENO Electronics offers high-performance 360° rotation solutions,
refined over years of helping customers with thousands of system designs in hundreds of industries.
How do you determine which is best for you?
Step one: Reference our slip ring products parameter chart, a matrix showing the key performance for CENO's products.
Keep in mind that if you don’t see the device needed for your project, we can work together on a derivative or a full custom device to fit your needs.
Step two: Fill out the custom form with necessary specification info, so we will be able to provide an evaluation solution, quote or more information on how we can make required slip ring easier.
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
Specification
Product Tags:
|
|

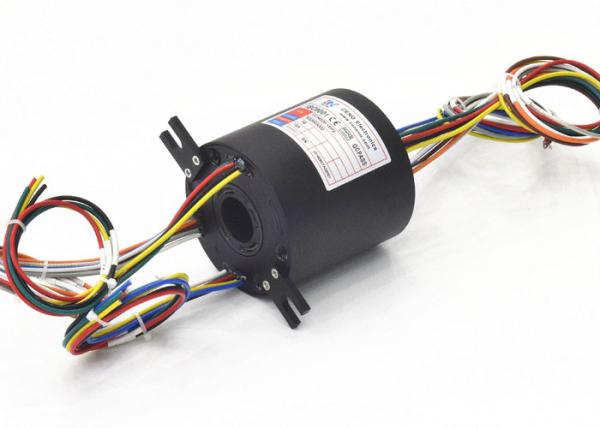

Rotary Joint Assembly Through Hole Slip Ring Hollow Shaft Series Fiber Brush Multipoint Contact Images
|
