Radar Antenna Slip Ring With Aviation Plugs
This slip ring is designed for radar antenna.Aviation plugs at the cable end simplify the connection and make the connection between cable and equipment is uniquely.Its through hole 65mm allows any shaft with diameter smaller than
this size pass through.
Specification
| ECN065-08P-12S |
| Current | 4*25A,2*40A,12*1A signal |
| Voltage | 24VAC |
| Electrical noise | ≤20mΩ(50rpm) |
| Dielectric strength | >200V@50Hz |
| Insulation resistance | ≥200MΩ@200VDC |
| Operating speed | 0-20 rpm |
| Contact material | precious metals |
| Operating temperature | -40~+65℃ |
| Through bore size | 65mm |
| IP protection grade | IP51 |
Application
- Radar antenna
- Industrial application
- Automation equipment
Features
- Center hole is easy to install,as well as integrate hydraulic,pneumatic,fiber optical,RF rotary joint
- Low friction, long life,low torque,smooth rotation
- Aviation plugs instead of traditional wires to transmit current and signals
Optional
- Through hole size
- Circuit number
- Current rating
- Installation way

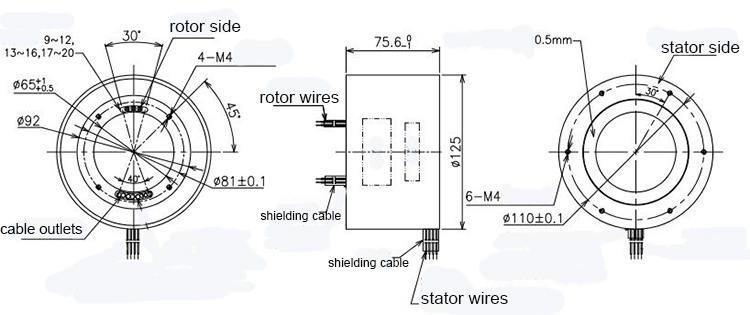

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
