Rotary Joint Integrate Ethernet 360°unrestricted Rotation
Ethernet slip ring rotary joint can transmit 100M/1000M Ethernet signal, this model slip ring transmits two group of 100M Ethernet signal and power,1000M Ethernet signal is optional. there are across flats design on rotational shaft for easy fixing rotor part.
Specification
| ECN000-02P-04P2-09S-02EM |
| Current | 2*20A,4*10A,1*PE,9*10 signal,2*100M Ethernet signal |
| Voltage | 0~220VAC/VDC |
| Electrical noise | ≤30mΩ(50rpm) |
| Dielectric strength | ≥1000V@50Hz(power) ≥300V@50Hz(signal) |
| Insulation resistance | 500MΩ@500VDC(power) 100MΩ@100VDC(signal) |
| Operating speed | 0-12 rpm |
| Contact material | precious metals |
| Housing material | aluminum alloy |
| Operating temperature | -20~+60℃ |
| IP protection grade | IP54 |
Features
- Transmit 100M/1000M Ethernet signal
- No package loss,no cross talk,low loss,stable transmission.
- Combine various signal and power
Applications
- Motion simulator
- Automation equipment
- Lithium battery equipment
Optional
- Signal type
- Circuit number
- Current rating

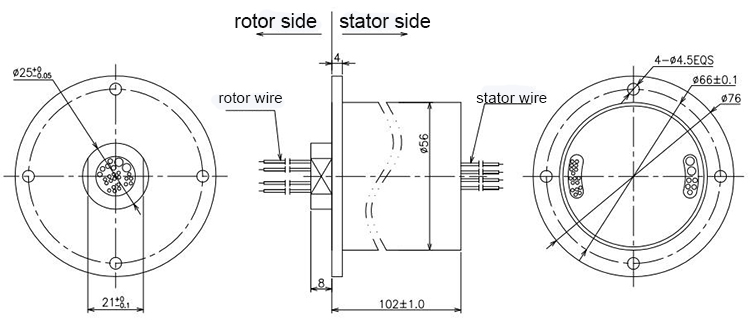

Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field. Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
