Large Hollow Shaft 300mm Through Hole Slip Ring 6 Wire
Large hollow shaft slip ring with 300 mm bore,6 wires for signal and 8 lines for power current,stainless steel housing.

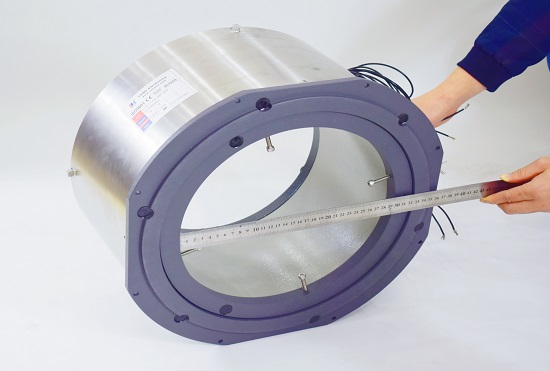

This is a large hollow shaft slip ring with 300mm inner bore size ,the through hole size can be optional according to different requests.Housing material is aluminium alloy & stainless steel,contacts material is copper graphite,it’s different from the normal power slip ring with more stable transmission and long life time .Three blocks connect rotor and stator for avoiding slip ring rotate during break time.The damage prone components of the new unit adopt scientific modular design,which allows ease of taking apart or installation without requiring disassembling its housing,quick and convenient replacement of internal parts is conducive to prolonging its service life.
Specification
| ECN-C-300-06P-08S | Specification |
| Circuits | 8*signal,6*15A |
| Voltage | 0~220VAC/VDC |
| Electrical noise | ≤70mΩ(50rpm) |
| Dielectric strength | ≥500V@50Hz |
| Insulation resistance | ≥100MΩ@100VDC |
| Operating speed | 2~8 rpm |
| Contact material | Copper graphite |
| Housing material | Aluminium alloy & stainless steel |
| IP protection grade | IP54 |
| Through hole size | 300 mm |
Features
- Anti-corrosion,moisture
- Easy maintenance
- Long life time
- 300mm through bore size
Applications
- Beer machine
- Canned equipment
- Marine & craneu
- For offshore equipment
- Seaport machine
- Oil drilling platform
- Port machinery
- Wind power system
Optional
- Through hole size
- Various signal integrate
- Circuits number
- IP protection grade
- Cable length
Outline Drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
