4X1000M Ethernet Slip Ring Large Size 350mm High Voltage 800V

Brand Name : CENO

Model Number : BHCN-C-06P-32S-04EG

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 500pcs per month

Delivery Time : 1 week

Packaging Details : Carton/As request

Current & Circuits : 6 circuits * 200A 32 circuits * signal; 4 group * 1000M Ethernet

Rating Voltage : 800 VAC/VDC; 200 VAC/VDC

Contact resistant floating : ≤ 10mΩ (50rpm); ≤ 30mΩ (50rpm)

Ethernet speed rate : 4 group * 1000M Ethernet

IP grage : IP54

Operating speed : 0~50rpm

Lead Wire Size : Rotor side 500mm; Stator side 500mm

lead wire size : 70mm² lead wire; AWG22#Tin coated Teflon®UL (0.35mm²); CAT5e

Through hole size : -20℃~+60℃

Extender diameter : Ø350mm

Contact Now

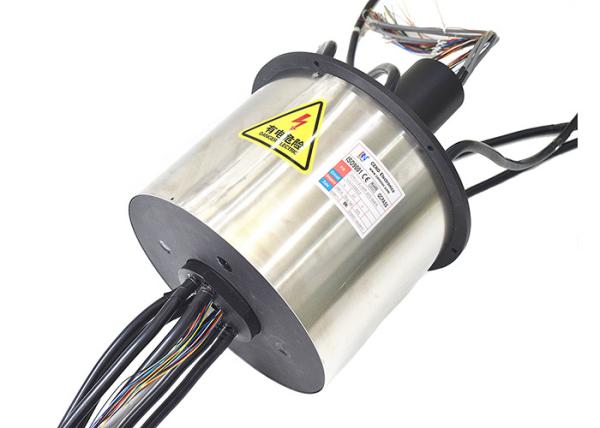

Slip ring with 4*1000M Ethernet large size Ø350mm high voltage 800V

BHCN-C-06P-32S-04EG is a large size carbon brush integrated slip ring which combine power, data and Ethernet signals from CENO electrical company. It’s called carbon brush slip ring too, there are 6circuits of 200A power, 32 circuits for weak data signals and 4 group of 1000M Ethernet. Due to it’s excellent weather resistance, high electrical safety, special design and easy maintenance features. This large size carbon brush slip ring mainly used on the Marine machinery, Harbour machinery, cable drum, offshore platform crane etc.

Features

  • Excellent weather resistance & high electrical safety
  • Most of the parameter is optional and transmit stably
  • Advance fiber bush, low friction & long service life

Applications

  • Automatic machine
  • Marine machinery
  • Harbour machinery
  • Cable drum
  • Offshore platform crane

Optional

  • Circuit number & Current
  • Working speed
  • Protection grade
  • External diameter
  • Materials

Specification

BHCN-C-06P-32S-04EG Specification
Current & circuits

6 circuits * 200A;

32 circuits * signal;

4 group * 1000M Ethernet
Rating Voltage

800 VAC/VDC

200 VAC/VDC
Dielectric strength

≥1500VAC@50Hz

≥500VAC@50Hz
Isolation resistance

500MΩ@500VDC

300MΩ@300VDC
Contact resistance wow

≤ 10mΩ (50rpm)

≤ 30mΩ (50rpm)
Contact material Copper graphite and Precious metal
Lead wire size

70mm² lead wire

AWG22#Tin coated Teflon®UL (0.35mm²)

CAT5e
Lead wire length Rotor side 500mm; Stator side 500mm
Working speed 0~50 rpm
Rotation method Circuit rotate, brush stationary
Installation

Stator fixed with flange

Rotor side driven horizontally
Housing material Stainless steel + Aluminum alloy
External diameter Ø350mm
Working temperature -20℃~+60℃
Humidity <90% (20℃)
Protect grade IP54

Outline drawing

4X1000M Ethernet Slip Ring Large Size 350mm High Voltage 800V

Application

4X1000M Ethernet Slip Ring Large Size 350mm High Voltage 800V

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

4X1000M Ethernet Slip Ring Large Size 350mm High Voltage 800V

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

4X1000M Ethernet Slip Ring Large Size 350mm High Voltage 800V

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
