Low Temperature Gigabit Ethernet Integrated Slip Ring With Low Electric Noise

Brand Name : CENO

Model Number : ECN000-62P-02EM-01EG

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 500pcs per month

Delivery Time : 1 week

Packaging Details : Carton/As request

Current & Circuits : 6*20A, 1*PE, 48*2A, 8*5A, 2*100M Ethernet, 1*1000M Ethernet

Rating Voltage : 0~48 VAC/VDC

Dielectric strength : ≥500VAC@50Hz ≥300VAC@50Hz

Isolation resistance : ≥500MΩ@500VDC ≥100MΩ@100VDC

Operating speed : 0~300rpm

Contact material : Precious metal / gold to gold

Housing material : Aluminum alloy

Lead wire size : AWG12# 22# 24# Tin coated Teflon® UL

Lead wire length : Rotor : 300mm Stator : 300mm

Working temperaturediameter : -40°C~+60°C

Working humidity : 60%(20°C)

IP protection grade : IP52

Installation way : Stator side is driven horizontally Rotor side drove by the screw bolt

Contact Now

Low temperature Gigabit Ethernet integrated slip ring with low electric noise

ECN000-62P-02EM-01EG is Gigabit Ethernet slip ring integrated electrical power and signals from CENO electronics. There are 6 circuits of 20A, 48 circuits of 2A, 8 circuits of 5A, 2 circuits of 100M Ethernet and 1 circuits of 1000M Ethernet. All of the signals ans currents are optional, It can mix multi signals and currents. Ethernet technology is the most commonly used network technology, stable transmission, no packet loss and no string code, mainly used on the Turntable test equipment, communication systems, wrapping machines, Electric heating equipment.

Features

  • Transmit staly & no packet loss
  • Provide RJ45 connector
  • Comply with EMC electromagnetic compatibility
  • Mix multi signals & power

Applications

  • Automatic machine
  • Turntable test equipment
  • Measuring instrument
  • Wrapping machines

Optional

  • Circuit number & Current
  • Working speed & temperature
  • Protection grade
  • Material

Specification

ECN000-62P-02EM-01EG

 Specification
Current & Circuits 6*20A, 1*PE, 48*2A, 8*5A, 2*100M Ethernet, 1*1000M Ethernet
Rating Voltage 0~48 VAC/VDC
Dielectric strength

≥500VAC@50Hz

≥300VAC@50Hz
Isolation resistance

≥500MΩ@500VDC

≥100MΩ@100VDC
Electrical noise ≤30mΩ (50rpm)
Operating speed 0~300rpm
Contact material Precious metals / Gold to Gold
Housing material Aluminum alloy
Working temperature -40°C~+60°C
Working humidity 60%(20°C)
IP protection grade IP52
Lead wire size

AWG12# 22# 24# Tin coated Teflon® UL

4 core shield wire
Lead wire length

Rotor : 300mm

Stator : 300mm
Installation way

Stator side is driven horizontally

Rotor side drove by the screw bolt

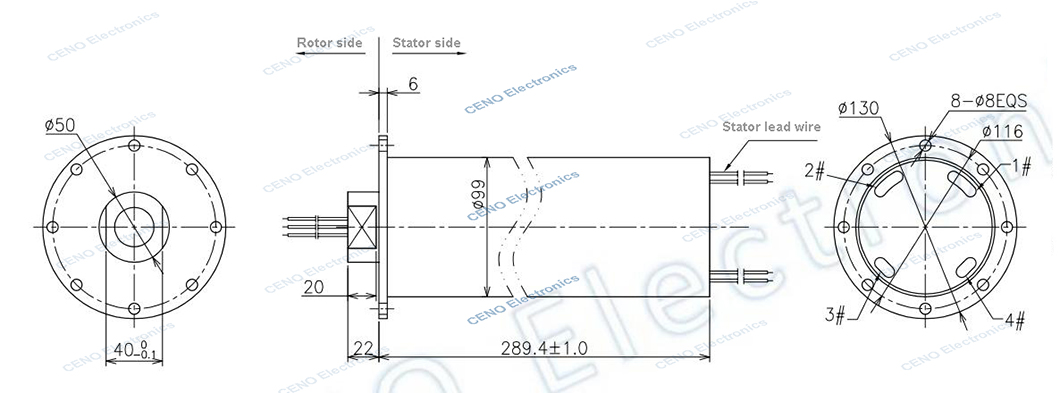

Outline drawing

Low Temperature Gigabit Ethernet Integrated Slip Ring With Low Electric Noise

Application

Low Temperature Gigabit Ethernet Integrated Slip Ring With Low Electric Noise

Why with CENO

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Low Temperature Gigabit Ethernet Integrated Slip Ring With Low Electric Noise

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

Low Temperature Gigabit Ethernet Integrated Slip Ring With Low Electric Noise

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
