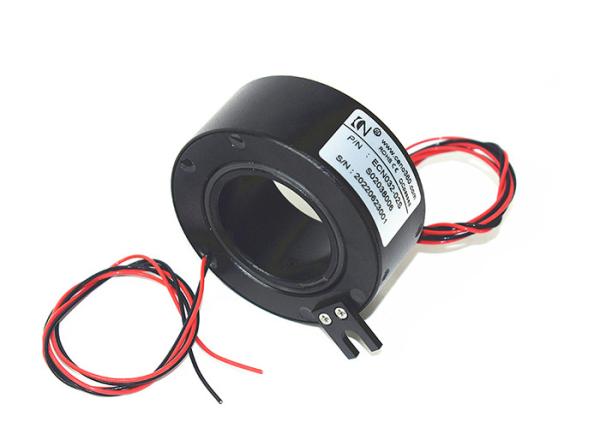

Through hole industry slip ring with low electric noise 2 circuits IP51
ECN032-02S is a through hole signal industry slip ring from CENO electrical company, there are 2circuits for signal, it can be operating smoothly at the speed of 0~40rpm within the temperature from -30°C to +72°C. The inner bore size is Ø32mm and the contact material is precious metal and housing material is Aluminum alloy. Most specification is optional such as the current, voltage, contact or housing material, even to the protection grade. It’s usually used on the Automation in industry, Amusement, construction engineering.
Features
• Low electric noise
• Easy to Install and Maintenance
• 2 circuits for signal
Applications
• Winding machine
• Chemical equipment
• Automation in industry
Optional
• Circuit number & Current
• Working speed
• IP Grade & Signal type
Specification
| ECN032-02S | |
| Current & Circuits | 2 circuits * Signal |
| Rating Voltage | 0~220VAC/VDC |
| Dielectric strength | ≥500VAC@50Hz |
| Isolation resistance | ≥100MΩ@100VDC |
| Contact resistant float | Max 30mΩ (50rpm) |
| Lead wire size | 2cores twisted shielded wires (0.15mm²) |
| Lead wire length | Rotor : 300mm; Stator : 150mm |
| Operating speed | 0~40rpm |
| Contact material | Precious Metal |
| Housing material | Aluminum alloy |
| Working temperature | -30°C ~ +72°C |
| Working humidity | <60% |
| Protection grade | IP51 |
| Installation way | Fix the rotor end to the main shaft customer supplied with screws |
| Through hole diameter | Ø32mm |
Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
