Integrated slip ring with 1000M Ethernet 2 x air 1.0MPa Exd ǁ BT4 Gb IP65

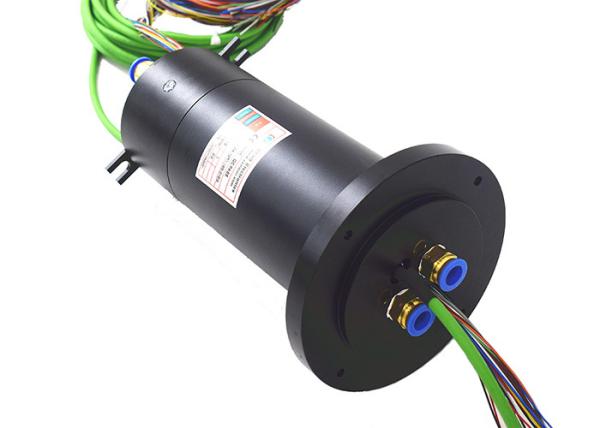

QCN0203-EX-12P1-16S-01EG is an integrated slip ring from CENO company. There are many type signals, such as 12 wires for 5A power, 16 circuits for signal, 1 group for 1000M Ethernet, 1 group for Nitrogen with interface size G 3/8" and 1 group for air with pipe size Ø12mm combined in this slip ring. The protect and Explosive - proof grade is Exd ǁ BT4 Gb IP65.Mainly applied in Automation equipment, Chemical pharmacy, Machinery manufacturing, Food processing, Iron and steel metallurgy or Plastic fiber manufacturing.
Features
• 1000M Ethernet
• Integrated many type signals
• High Explosive-proof and protect grade Exd ǁ BT4 Gb IP65
Applications
• Iron and steel metallurgy
• Filling machine
• Plastic fiber manufacturing
• Aeronautical application
Optional
• Circuit & group number
• Protection grade & work speed
• Signal type & interface type
• Material of contact and housing
Specification
| QCN0203-EX-12P1-16S-01EG | |
| Current & Circuits | 12 wires * 5A; 16 circuits * Signal; 1group * 1000M Ethernet |
| Rating Voltage | 0~220 VAC/VDC |
| Dielectric Strength | ≥1500VAC@50Hz (Power) ≥ 300VAC@50Hz (Signal) |
| Isolation resistance | ≥500MΩ@500VDC (Power) ≥100VAC@100VDC (Signal) |
| Resistance float | Max 30mΩ@(150rpm) |
| Lead wire size | AWG22# 24# Tin coated Teflon ®UL; CAT5e |
| Lead wire length | Rotor : 5000mm; Stator :5000mm |
| Operating speed | 0~30rpm |
| Contact material | Precious metal |
| Housing material | Aluminum alloy + Stainless steel |
| Working temperature | -20°C ~ +60°C |
| Working humidity | <60% |
| Protect grade | IP65 |
| Explosive - proof grade | Exd ǁ BT4 Gb IP65 |
| Air parameter | |
| Channel | 1 group * Nitrogen; 1 group * air |
| Interface size | G 3/8" & Ø12 air pipe |
| Pressure | 1.0MPa |

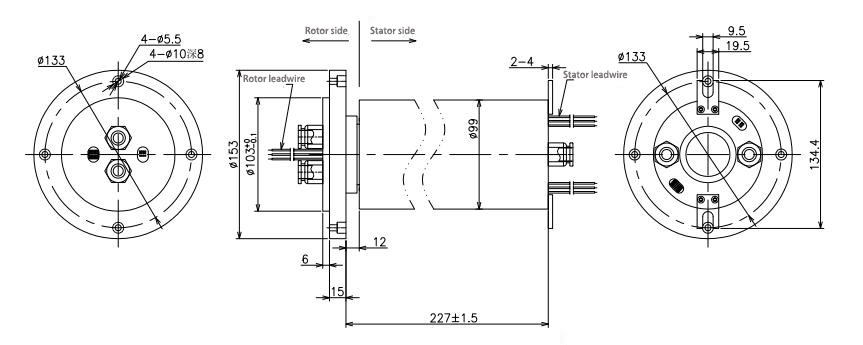

Outline Drawing
