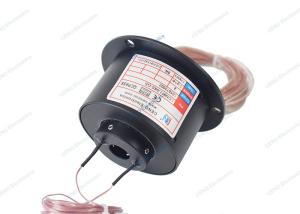

T type Thermocouple Detection Slip Ring Through Hole With High Speed 10000rpm

  • 1
  • 2
  • 3

Brand Name : CENO

Model Number : ECN011-04S-GS

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union, L/C

Supply Ability : 1000pcs per month

Delivery Time : 1 weeks

Packaging Details : Cartons/As request

Current & Circuits : 2 group* T-type thermocouple

Rating Voltage : 0~24VAC/VDC

Dielectric strength : ≥100VAC@50Hz

Isolation resistance : ≥50MΩ@100VDC

Electrical Noise : Max 30mΩ

Operating speed : 0~10000rpm

Contact material : Precious Metal

Housing material : Aluminum alloy

Working temperature : -20°C~+60°C

Working humidity : 60%

IP protection grade : IP51

Lead wire length : Rotor: 1000mm; Stator: 3000mm

External diameter : Ø57mm

Installation : Rotor side fixed on the guest main shaft with screws

Contact Now

Through Hole T-type Thermocouple Detection Slip Ring With High Speed 10000rpm

ECN011-04S-GS is CENO’s new design T-type thermocouple hollow shaft slip ring with high speed up to 10000rpm for high speed detection equipment. It features the low torque, low consumption, high stable performance and long service life. For it’s compact structure, small and light weight always applied to the automatic machine, test facilities and instruments, high-speed train detect equipment. For more information about how CENO’s slip ring can fit your specific operation environments, please contact us any time.

Features

  • T-Type thernocouple
  • High working speed is 10000rpm and can be optional
  • Compact structure small & light weight and Install easily

Applications

  • Automatic machine
  • Test facilities & instruments
  • High-speed train detect equipment
  • Non-destructive detector

Optional

  • Signal type and group
  • Electrical parameters
  • Contact / Housing Materials
  • Mechanical appearance
  • Operating speed




Specification

ECN011-04S-GS

 Specification
Current & Circuits 2 group* T-type thermocouple
Rating Voltage 0~24VAC/VDC
Dielectric strength ≥100VAC@50Hz
Isolation resistance ≥50MΩ@100VDC
Electrical Noise 30mΩ (50rpm)
Contact material Precious Metal
Housing material Aluminum Alloy
Working temperature -20°C~+60°C
Working humidity 60 %RH
IP protection grade IP51
Operating speed 0~10000rpm

Lead wire length

Rotor : 1000mm; Stator : 3000mm
Inner Diameter Ø11.5mm
External diameter Ø57mm
Installation Rotor side fixed on the guest main shaft with screws




Outline drawing

T type Thermocouple Detection Slip Ring Through Hole With High Speed 10000rpm





Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

T type Thermocouple Detection Slip Ring Through Hole With High Speed 10000rpm

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

T type Thermocouple Detection Slip Ring Through Hole With High Speed 10000rpm

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

T type Thermocouple Detection Slip Ring Through Hole With High Speed 10000rpm

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
