Product Description:
ECN050-05P5-01EM-01EG is CENO new Ethernet slip rings which combines 5 circuits for Electric Power with 2 circuits for Ethernet signals. In past twenty years, CENO have been success fully performance in industrial automation system application. We mainly engaged in high-end slip rings and have produce and manufacture thousand kinds of slip rings. For stably data transfer or data transfer in EMC sensitive environments, We manufacture a line of Ethernet slip rings. For more information about how CENO slip ring can suit your application, please contact us.
Features
- Combine Ethernet & Electric
- Circuits 1-200 is optional
- Composite brush
- High speed and reliably
- Widely usage & applications
Applications
- Data center
- Servo machine room
- Automatic industrial system
- Surveillance system
- Intelligence control system
Optional
- Circuits, Voltage, Current
- Data or signal type
- Materials
- Protection grade
- Speed
Technical Parameters:
| ECN050-05P5-01EM-01EG | Specification |
| Current & Circuits | 5circuits* 32A; 1circuits*100M Ethernet; 1circuits*1000M Ethernet |
| Rating Voltage | 0~415VAC/VDC |
| Dielectric strength | ≥1500VAC@50Hz (15A) ≥300VAC@50Hz (Other) |
| Isolation resistance | ≥500MΩ@500VDC (Power) ≥100MΩ@100VDC (Signal) |
| Electrical Noise | 30mΩ (50rpm) |
| Contact material | Precious Metal |
| Housing material | Aluminum Alloy |
| Working temperature | -20°C~+60°C |
| Working humidity | 60 %RH |
| IP protection grade | IP51 |
| Operating speed | 0~300rpm |
| Inner diameter | Ø50mm |
| Lead wire size | AWG12# Wire Teflon® UL CAT5e |
| Lead wire length | Rotor : 200mm; Stator : 200mm |
| Installation way | Fix stator with anti-rotation Shaft drive rotor running |

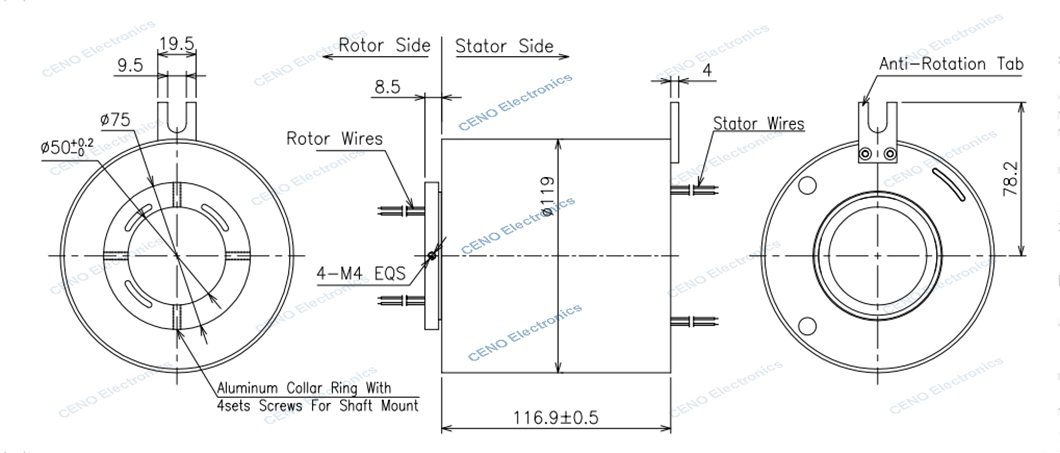

Outline drawing:
Applications:
ECN050-05P5-01EM-01EG is CENO new product Integrated Signal Slip Ring which is designed for the construction machinery specially adjusted for harsh working conditions, and the temperature resistance performance can meet the demands of working in the Siberian cold area and the Brazilian tropic rainforest area. CENO Signal slip rings have ultra long distance signal transmission and long service life with stable transmission, no packet loss and comply with EMC requirement. It is available in a wide range of prices, and the packaging details and delivery time can be discussed based on the customer’s request. This product is in stock and has a supply ability of 1000pcs per month. Payment terms include T/T, Paypal, and Western Union. ECN050-05P5-01EM-01EG Industrial Slip Ring is an ideal solution for your industrial needs.
Support and Services:
We provide technical support and service for our Industrial Slip Rings. Our team of experts is available to assist you with any technical questions or solutions you may have. We also offer a variety of services including installation and maintenance, troubleshooting, and custom solutions.
If you need assistance, please contact us through our website or call us directly. We will do our best to help you find the right solution for your application.
We strive to provide the best possible customer service and product support. If you have any questions or concerns, please don’t hesitate to contact us.
Packing and Shipping:
Industrial Slip Ring Packaging and Shipping:
- The slip rings meet the requirements of the relevant international codes and standards.
- Slip rings are packed in wooden cases or metal boxes.
- Large packages are shipped by sea or air.
- Small packages are shipped by express.
- Each package is labeled with product name, model, size, quantity, origin, etc.
- The packages are inspected to ensure that the products are delivered in good condition.
FAQ:
Q: What is the brand name of your Industrial Slip Ring?
A: Our Industrial Slip Ring is CENO brand.
Q: What is the model number of your Industrial Slip Ring?
A: The model number of our Industrial Slip Ring is ECN000-04P-08S.
Q: Where is your Industrial Slip Ring manufactured?
A: Our Industrial Slip Ring is manufactured in China.
Q: What is the minimum order quantity of your Industrial Slip Ring?
A: The minimum order quantity of our Industrial Slip Ring is 1pcs.
Q: What is the delivery time of your Industrial Slip Ring?
A: The delivery time of our Industrial Slip Ring is 2 weeks.
