2 Circuits 1000M Ethernet Signal Slip Ring With 8 Circuits 10A For Industry

  • 1
  • 2
  • 3

Brand Name : CENO

Model Number : ECN016-08P2-02EG

Certification : CE,RoHS,ISO9001,UL

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 1000pcs per month

Delivery Time : 1 week

Packaging Details : Carton/As request

Current & Circuits : 8 * 10A; 2 * 1000M Ethernet

Rating Voltage : 0-220VAC/VDC

Dielectric strength : ≥1000VAC@50Hz; ≥300VAC@50Hz

Isolation resistance : ≥500MΩ@500VDC; ≥300MΩ@500VDC

Electrical noise : ≤30mΩ (50rpm)

Operating speed : 0~300rpm

Contact material : Precious metal

Housing material : Aluminum alloy

Working temperature : -20°C~+60°C

Working humidity : 60%

IP protection grade : IP51

Inner Diameter : Ø16mm

External Diameter : Ø56mm

Lead wire length : Rotor: 300mm; Stator: 300mm

Installation : Rotor side fixed on main shaft with screws

Lead wire size : AWG17# # Tin coated Teflon® UL

Contact Now

2 circuits 1000M Ethernet Signal Slip Ring with 8 circuits 10A For Industry

ECN016-08P2-02EG is CENO’s new through hole slip ring combine 8 circuits 10A electric power with 2 circuits Ethernet signal for industry. It’s hollow shaft design and inner bore size 16mm, continuous rotating and transferring power and Ethernet signal stably within speed 300rpm & temperature -20℃~+60℃. At CENO most of parameters are optional as customers’ special applications. Take inner diameter for example size 3mm-9000mm is optional. For more information please contact CENO expert team.

Features

Combine Ethernet & Electric

Stable transmitting, no string code, low loss comply with EMC

Can be integrated various data

Install easy & Free maintenance

Applications

Automatic machine

Turntable testing machine

Intelligent housing system

Filling machinery

Medical equipment

Optional

Circuit, Voltage, Current

Signals and data

Contact / Housing Materials

Protection grade

Working speed

Specification

ECN016-08P2-02EG

 Specification
Current & Circuits 8 circuits * 10A; 2 circuits * 1000M Ethernet
Rating Voltage 0-220VAC/VDC
Dielectric strength ≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance ≥500MΩ@500VDC; ≥300MΩ@500VDC
Contact resistance ≤30mΩ (50rpm)
Contact material Precious metal
Housing material Aluminum alloy
Working temperature -20°C~+60°C
Working humidity 60 %RH
IP protection grade IP51
Operating speed 0~300rpm
Inner diameter Ø16mm
Lead wire size

AWG17 # Tin coated Teflon® UL

CAT5E
Lead wire length Rotor:300mm; Stator:300mm
Installation Rotor side fixed on main shaft with screws

Outline Drawing

2 Circuits 1000M Ethernet Signal Slip Ring With 8 Circuits 10A For Industry

Why with CENO

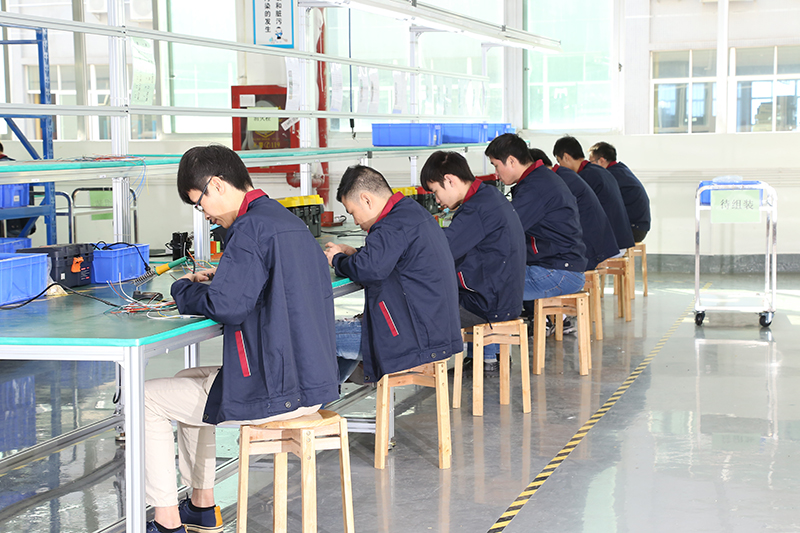

CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

2 Circuits 1000M Ethernet Signal Slip Ring With 8 Circuits 10A For Industry

Certification

ISO9001,CE,RoHS,UL,Explosion-proof

2 Circuits 1000M Ethernet Signal Slip Ring With 8 Circuits 10A For Industry

CENO Advantage

Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

2 Circuits 1000M Ethernet Signal Slip Ring With 8 Circuits 10A For Industry

2 Circuits 1000M Ethernet Signal Slip Ring With 8 Circuits 10A For Industry

Service CENO provides

24 hours,7days consultant service.

Mass and customized production.

Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
