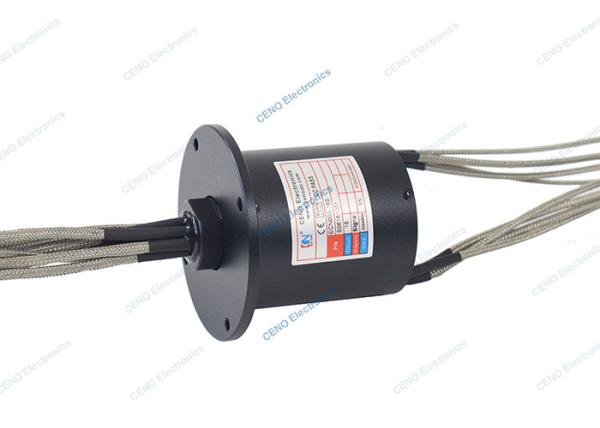

16 Circuits K-type Thermocouple Signal Slip Ring with Flange For Industry system

Brand Name : CENO

Model Number : ECN000-16S

Certification : CE,RoHS,UL,ISO9001

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal,Western Union, L/C

Supply Ability : 10000pcs month

Delivery Time : Off the shelf

Packaging Details : Carton

Circuit number & Current : 16 circuis * K-type thermocouple signal

Rating Voltage : 0-220VAC/VDC

Dielectric strength : ≥300VAC@50Hz (Signal)

Isolation resistance : ≥100MΩ@100VDC

Contact resistance : ≤20mΩ (50rpm)

Operating speed : 0~200rpm

Working temperature : -20°C~+60°C

Working humidity : 60 %RH

IP protection grade : IP51

Contact material : Precious Metal

Housing material : Aluminum alloy

Outer Diameter : Ø56mm

Lead wire size : K-type thermocouple cable

Lead wire length : Rotor: 300mm; Stator: 300mm

Installation : Flange installation

Contact Now

16 Circuits K-type Thermocouple Signal Slip Ring with Flange For Industry system

ECN000-16S is CENO new Thermo couple slip ring with 16 circuits K-type thermocouple signals, which is often used in instruments to measure the temperature of gases or liquids in furnaces, pipelines, and the temperature of solid surfaces. As the main means of temperature measurements, thermocouples are widely used. And there fore have various requirements for fixtures and technical performance, take CENO thermocouple slip ring for example, It continuous 360°rotating and transmitting signal from stator side to rotor side. For more information please contact us.

Features

  • Long service life & not affect by changes in ambient temperature
  • Wide temperature measurement range (-270℃~2800℃)
  • Easy assembly and replacement

Application

  • CNC Machine
  • Automatic feeding
  • Converter tilting equipment
  • Metallurgy
  • Welding equipment

Optional

  • Circuit, Voltage, Current
  • Integrate signal / data
  • Contact / Housing Materials
  • Shape and Dimensions
  • Working speed & temperature


Specification

ECN000-16S

 Specification
Current & Circuits 16 circuits * K-type thermocouple signal
Rating Voltage 0-220VAC/VDC
Dielectric strength ≥300VAC@50Hz
Isolation resistance ≥100MΩ@100VDC
Contact resistance ≤20mΩ (50rpm)
Contact material Precious Metal
Housing material Aluminum alloy
Working temperature -20°C~+60°C
Working humidity 60 %RH
IP protection grade IP51
Operating speed 0~200rpm
Outer diameter Ø56mm
Lead wire size K-type thermocouple cable
Lead wire length Rotor:300mm; Stator:300mm


Outline drawing

16 Circuits K-type Thermocouple Signal Slip Ring with Flange For Industry system



Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.

FAQ

1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.

Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.

Certification
ISO9001,CE,RoHS,UL,Explosion-proof

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
