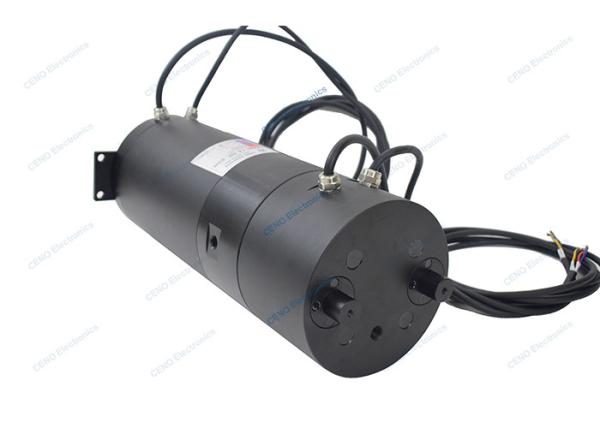

2 Channels Pneumatic Rotary Union Combined Rotary Electrical Connector

Brand Name : CENO

Model Number : QCN0203-07P1

Certification : ISO9001,CE,RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T,Paypal, Western Union

Supply Ability : 1000pcs per month

Delivery Time : 2 weeks

Packaging Details : Carton

Current & Circuits : 4 circuits * 2A; 3 circuits * 2A

Rating Voltage : 0~415VAC/VDC

Dielectric strength : ≥1000VAC@50Hz

Isolation resistance : ≥100MΩ@100VDC

Contact resistance : 30mΩ (50rpm)

Contact material : Precious metal

Housing material : Aluminum alloy + stainless steel

Working temperature : -20°C~+60°C

Working humidity : 60 %RH

IP protection grade : IP65

Operating speed : 0~10rpm

External diameter : Ø200mm

The road : 2 channel gas

Pressure : ≤ 8 Bar

Connection diameter : G 3/8”

Installation way : Flange Installation

Rotary Torque : ≤ 15N*m

Contact Now

2 channels pneumatic rotary union combined rotary electrical connector

QCN0203-07P1 is CENO integrate pneumatic / hydraulic rotary union which combine 7 circuits 2A Electric signal and 2 channels gas with Max pressure 8Bar. Pneumatic - hydraulic integrate conductive slip ring can be divided into pneumatic conductive slip ring and hydraulic conductive slip ring according to the different transmission media. The working principle of pneumatic conductive slip ring is to transfer gas from the stator part to rotor device to complete the conductive transmission. More information please contact us.

Features

  • Electric circuits be to hundreds, gas and liquid be to 16 channels
  • Stable transmitting, long life
  • Be integrate kinds signals & data
  • Flange design easy installation


Applications

  • Automatic machine
  • Turntable testing machine
  • Engineer machinery
  • Filling machinery
  • Medical equipment


Optional

  • Circuit, Voltage, Current
  • Sealing type & media
  • Contact / Housing Materials
  • Protection grade
  • Working speed




Specification

QCN0203-07P1

Specification
Circuits & Current4 circuits * 2A; 3 circuits * 2A
Rating Voltage0~415VAC/VDC
Dielectric strength≥1000VAC@50Hz
Isolation resistance≥100MΩ@100VDC
Electrical NoiseMax 30mΩ (50rpm)
Working temperature-20°C~+60°C
Working humidity60%RH
IP protection gradeIP65
Working Speed0~10 rpm
Outer DiameterØ200mm
Contact MaterialPrecious Metal
Housing MaterialAluminum alloy + stainless steel
Lead wire size3 cores / 4 cores shielded wire
Lead wire lengthRotor side: 2000mm; Stator side: 2000mm
InstallationFlange installation
Rotary Joints
The road2 channel gas ( 2*input; 1*output )
Interface sizeG3/8”
Pressure Max8 Bar
Rotary Torque≤ 15N*m





Outline Drawing
2 Channels Pneumatic Rotary Union Combined Rotary Electrical Connector





Our Service
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be provided you upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.


FAQ

1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.

2. How long have we been in the business?
CENO established slip rings business since 2009. We have thousands of customers accepted our products or services.

3. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.

4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application’s operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. A good place to start your search is with our standard slip rings. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.

5. Do you offer custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.



Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
2 Channels Pneumatic Rotary Union Combined Rotary Electrical Connector

Certification
ISO9001,CE,RoHS,UL,Explosion-proof
2 Channels Pneumatic Rotary Union Combined Rotary Electrical Connector

CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.

Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.

Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
